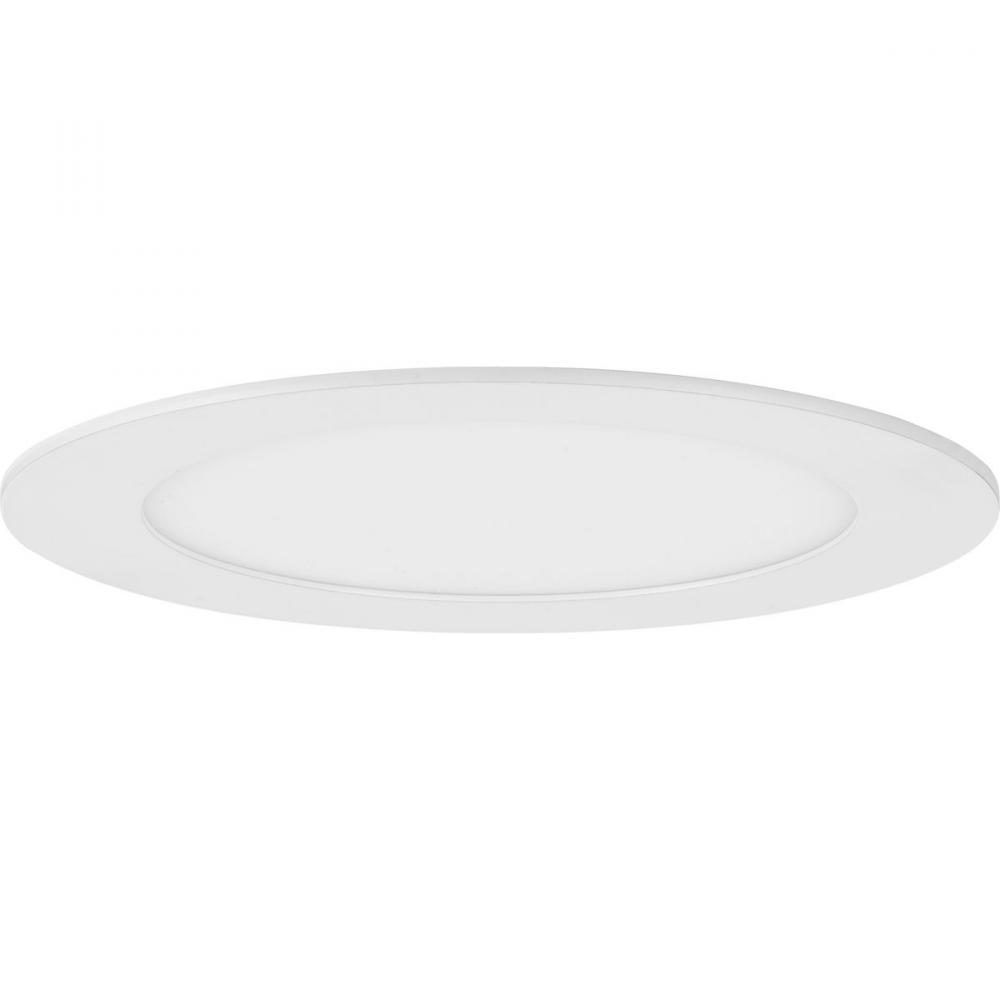

P807001-028-30 6IN EDGELIT LED TRIM (GLUD4)
With a slim profile and the latest LED technology, the 6-inch Everlume Recessed Downlight offers smooth, even 3000K illumination to homes and commercial spaces. Its edge-lit surface delivers low glare, 12W, 950 lumen light without dark spots from a polycarbonate lens and is dimmable using ELV or TRIAC dimmers. Its aluminum trim is finished in crisp Satin White that blends quietly into its surroundings. A detached J-Box, provided with quick connects, eliminates the need for an additional recessed housing. The trim features a gasket to close off the ceiling opening. Additionally, spring clips ensure a secure flush mount to the ceiling surface. Everlume recessed LED is easily installed into 6-inch openings in low clearance, new construction and remodel, ceiling applications. This versatile downlight is JA8-2019 Title 24 Rated, and cETLus Wet Listed for use in areas where water may be present.
Downloads
Product Specification
Item #
GLUD4
Dimensions
Height: 1.00"
Width: 7.17"
Length: 7.17"
Additional product details
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Option
Title 24 , Wet Rated , Prop 65
Voltage
100-120
Lumens
450-800
Mount Type
Flush Mount
Kelvin
2501-3000
Location Rating
Wet Rated
Wattage
12w
Category
Recessed
Finish
Satin White
Style
Utilitarian
Option
Prop 65 , Title 24 , Wet Rated
Family
Everlume
Voltage
120 VAC
Number of Bulbs
1 Bulbs
Bulb Hours
50000
Bulb Type
LED
Kelvin
3000
Keyword(s)
Bathroom, Bedroom, Bonus Room, Garage, Great Room, Kitchen, Laundry, Living Room, Sitting Room, Utility
Length
7.17 in
Lumens / Light Output
950 lm
Material
Aluminum, Steel
Ship Carton Height
7.48
Ship Carton Length
7.64
Ship Carton Width
2.8
Ship Weight
1.25
Warranty
5 Years Limited Warranty
Weight
1.05
Americans with Disabilities Act
Yes
Base Type
Integrated
Bulb CRI
90
Bulb Included
Yes
Bulb Wattage
12 W
Can be Mounted Up or Down
No
Color
White
Convertible Fixture Includes Both Mounts
No
Country of Origin
CN
Dark Sky
No
Dimming
ELV/Reverse Phase;Triac/Forward Phase
Dimming Range
Dims to 10% Brightness
Energy Efficient
Yes
Energy Star
No
Finish Type
Painted
Frequency Rating
60 Hz
Lamp Type Basic
Solid State
Lumens per Watt
79
Mount Location
Ceiling Flush/Recessed
Post Top Fits Standard
No
Prop 65
Yes
Quick Link Connector
No
Safety Rating
cETLus Approved
Starting Temperature Minimum
-25 °C
Title 24
Yes
Wet Rated
Yes


Other Details:
  • A detached J-Box, provided with quick connects, eliminates the need for an additional recessed housing
  • Edge-lit surface delivers glare-free illumination to low clearance, new construction and remodel, ceiling applications residential and commercial settings
  • Everlume easily mounts to ceilings in indoor rooms including bathrooms, bedrooms, bonus rooms, garages and sitting rooms and outdoor settings like porches and patios
  • Includes installation instructions and mounting hardware for a quick, easy installation
  • Its aluminum trim is finished in crisp Satin White that blends quietly into its surroundings
  • Its edge-lit surface delivers low glare, 12W, 950 lumen, 3000K light without dark spots from a polycarbonate lens and is dimmable using ELV or TRIAC dimmers
  • Measures 7.165 in. Dia x 1 in. H
  • The trim features a gasket to close off the ceiling opening and spring clips ensure a secure flush mount to the ceiling surface.
  • This versatile downlight is ASTM E283 Air Tight Rated, JA8-2019 Title 24 Rated, and cETLus Wet Listed for use in areas where water may be present.
  • Warranty: Our 5-Year Limited Warranty guarantees your complete satisfaction with your purchase and includes professional after-sales customer service support
Included Items
Bulbs: (1) x 12 Watt LED Solid State
