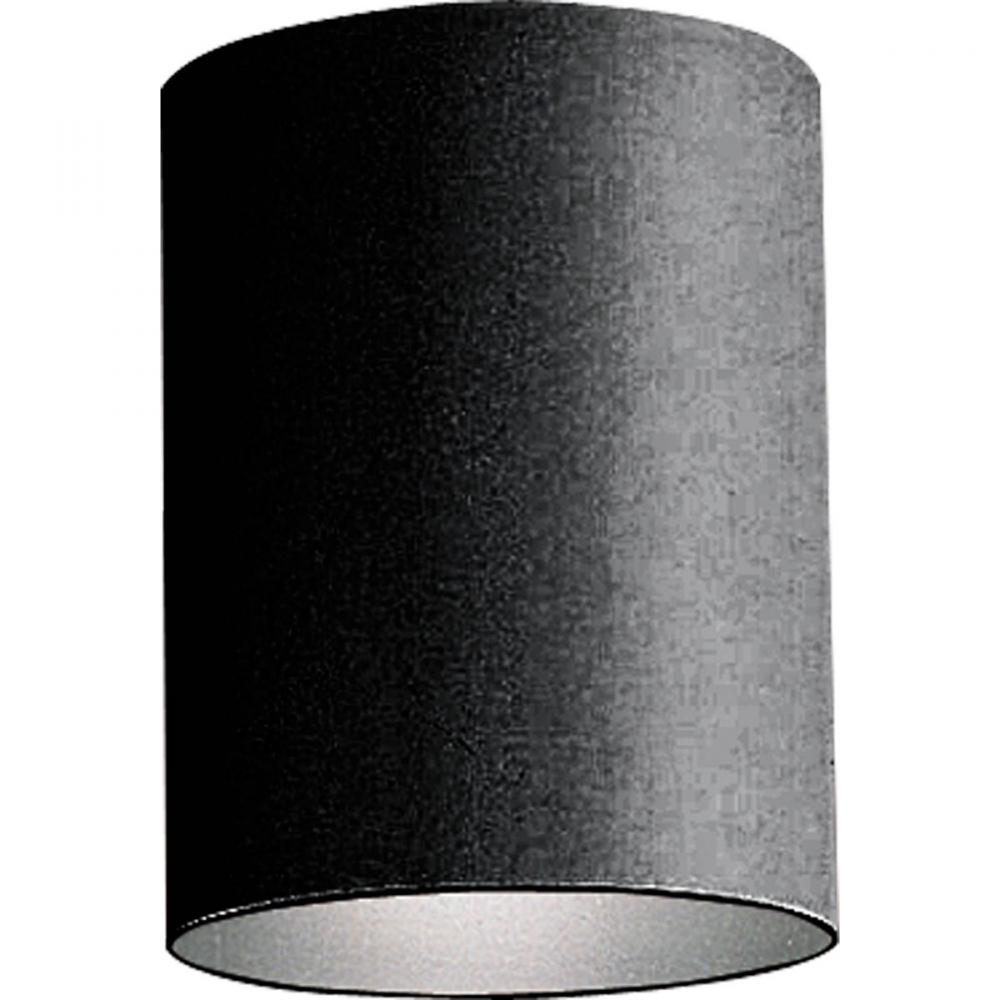

P5774-31/30K 5IN LED CYLINDER 17W 1LTCEL (6JT3M)
5" flush mount cylinder in Black. This outdoor ceiling mount is ideal for a wide variety of interior and exterior applications including residential and commercial. The Cylinders feature a 120V alternating current source and eliminates the need for a traditional LED driver. This modular approach results in an encapsulated luminaire that unites performance, cost and safety benefits.
Downloads
Product Specification
Item #
6JT3M
Dimensions
Height: 6.50"
Width: 5.00"
Length: 5.00"
Additional product details
Category
Sconces
Subcategory
Wall Lights
, Outdoor Wall Lights
Finish
Black
Style
Contemporary
, Transitional
Option
Dark Sky
, Energy Efficient
, Title 24
, Outdoor
, Wet Rated
, Damp Rated
, LED
, Title 20
Voltage
100-120
Lumens
450-800
Mount Type
Flush Mount
Kelvin
2501-3000
Location Rating
Wet Rated
Category
Outdoor
Finish
Black
Style
Modern;Transitional
Option
Damp Rated
, Dark Sky
, Energy Efficient
, Title 20
, Title 24
Family
Cylinder
Voltage
120
Number of Bulbs
1 Bulbs
Backplate Width
5.00
Bulb Hours
60000
Bulb Type
Module
Introduction Date
01/01/2015
Kelvin
3000
Keyword(s)
lantern;exterior light;outdoor light
Length
5.00
Lumens / Light Output
484
Material
Die Cast and Extruded Aluminum
Ship Carton Height
8.62
Ship Carton Length
6.75
Ship Carton Width
6.75
Ship Weight
1.58
Special Features
Black finish.;Ideal for a wide variety of interior and exterior applications.;Die-cast aluminum construction with durable powder coated finish;484 lumens 24 lumens/watt (delivered);3000K color temperature, 90+ CRI;Meets California Title 24 high efficacy re
Vendor Ship Method
Non UPS Shippable False
Warranty
5-year Limited
Weight
1.10
Wire Included
6 in
Americans with Disabilities Act
No
Backplate Depth
5.00
Bulb Base
Module
Bulb CRI
90 CRI
Bulb Included
Yes
Can be Mounted Up or Down
No
Canopy Shape
Round
Certified Listed Location
Damp Location Listed
Construction Material Main part
Construction
Country of Origin
CN
Dark Sky
Yes, per photometry (not registered with IDA)
Design Series
No
Dimming Compatability
Lutron_Diva DVELV-300P;Lutron_Nova NTELV-300;Lutron_Vierti VTELV-600;Lutron_Maestro MAELV-600;Lutron_spacer/system SPSELV-600;Leviton_Renoir II AWRMG-EAW;Leviton_6615-P
Dimming Protocol
ELV/Reverse Phase
Dimming Range
10%
Energy Efficient
Yes
Energy Star
No
Finish Type
Powder Coat Paint
Frequency Rating
60 Hz
Grounded Convenience Outlet Included
No
JA8
No
Lamp Type Actual
LED
Lamp Type Basic
Solid State
Lamp Wattage
17.1
Lumens per Watt
24.00
Mount Location
Ceiling
MTO
No
Operating Temperature Celcius Max
30 °C
Prop 65
Yes
Prop 65 Description
Reproductive Harm, Cancer
Room Type
Outdoor
Safety Rating
cCSAus
Starting Temperature Minimum
-30 °C
Sub Brand
Progress LED
Title 20
Yes
Title 24
Yes
Weight of Fixture Exceeds NEC Limits
No
Width Diameter
5 in dia.
Finish
Additional options that would change other selections
Lamp Wattage
Additional options that would change other selections
Included Items
Bulbs: (1) x 17.1 Watt Module
