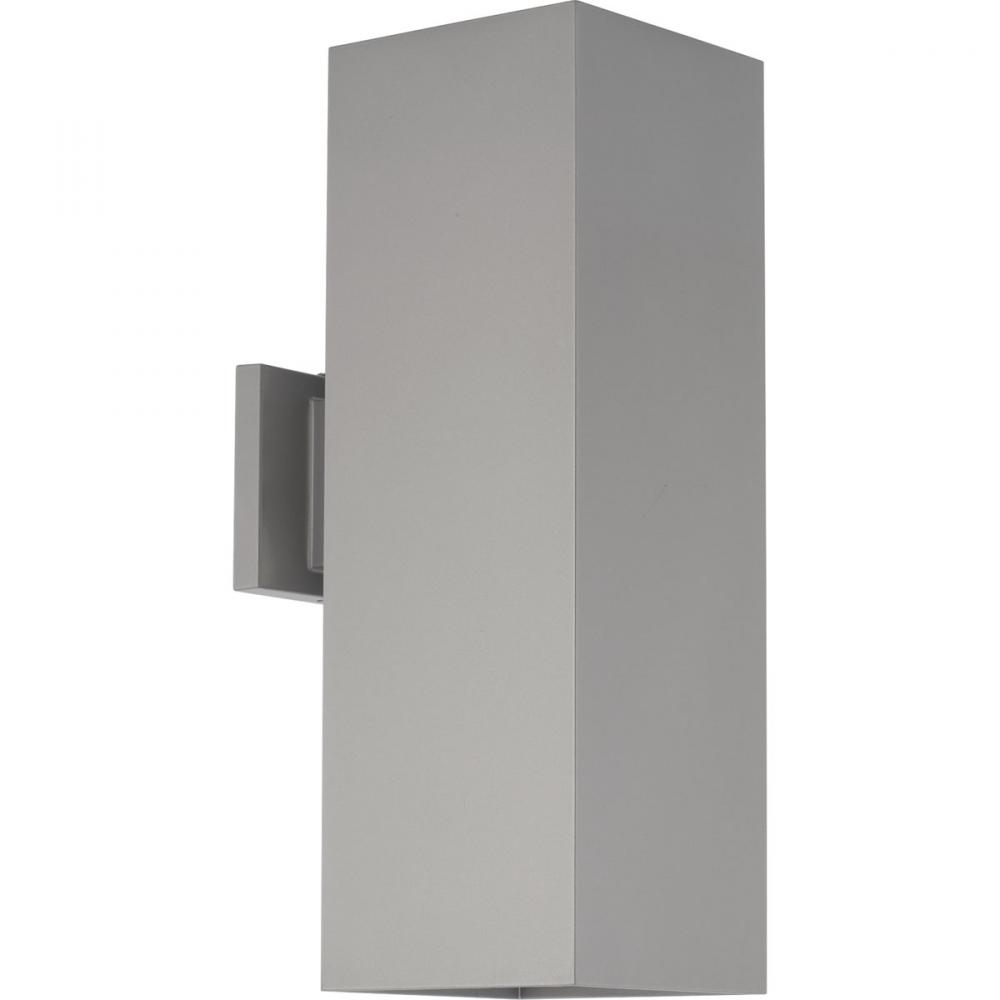

P5644-82-30K 6IN SQUARE CYLD UP/DWN WALL
Image may not reflect selected features
P5644-82-30K 6IN SQUARE CYLD UP/DWN WALL (6MYQ7)
6" LED Square Cylinder with heavy-duty aluminum construction, die-cast aluminum wall bracket. UL listed for wet locations. Powder coat for chipping and fading resistance. Metallic Gray finish. Wet location listed when used with P860047 top cover lens (sold separately).
Downloads
Product Specification
Item #
6MYQ7
Dimensions
Height: 18.00"
Width: 8.88"
Length: 6.00"
Additional product details
Category
Sconces
Subcategory
Wall Lights , Outdoor Wall Lights
Finish
Gray
Style
Contemporary , Transitional
Option
Energy Efficient , Energy Star , Title 24 , Outdoor , Wet Rated , Damp Rated , LED , Title 20
Voltage
100-120
Lumens
450-800
Mount Type
Flush Mount
Kelvin
2501-3000
Location Rating
Wet Rated
Category
Outdoor
Finish
Metallic Gray
Style
Modern;Transitional
Option
Damp Rated , Energy Efficient , Title 20 , Title 24
Family
LED Sq Cylinder
Voltage
120
Number of Bulbs
2 Bulbs
Backplate Height
4.00
Backplate Width
4.03
Bulb Hours
60000
Bulb Type
LED
Depth
8.88
Height To Center of Outlet
8.00
Introduction Date
01/16/2017
Kelvin
3000
Keyword(s)
flush mount;ceiling fixture;ceiling light;led light;energy efficient
Length
6.00
Lumens / Light Output
3731
Material
Die-Cast Aluminum
Ship Carton Height
21.06
Ship Carton Length
11.80
Ship Carton Width
9.06
Ship Weight
7.35
Special Features
Metallic Gray finish.;Ideal for a wide variety of interior and exterior applications.;Die-cast aluminum construction with durable powder coated finish;3731 lumens 61.8 lumens/watt per module (delivered);3000K color temperature, 90+ CRI;Wet location listed
Vendor Ship Method
Non UPS Shippable False
Warranty
5-year Limited
Weight
7.35
Wire Included
6 in
Americans with Disabilities Act
No
Bulb CRI
90 CRI
Bulb Included
Yes
Can be Mounted Up or Down
No
Canopy Shape
Square
Certified Listed Location
Damp Location Listed
Construction Material Main part
Construction
Convertible Fixture Includes Both Mounts
FALSE
Country of Origin
CN
Dark Sky
No
Design Series
No
Dimming Compatability
Lutron_Diva DVELV-300P;Lutron_Nova T NTELV-300;Lutron_Vierti VTELV-600;Lutron_Maestro MAELV-600;Lutron_spacer/system SPSELV-600;Leviton_Renoir II AWRMG-EAW;Leviton_6615-P
Dimming Protocol
ELV/Reverse Phase
Dimming Range
10%
Energy Efficient
Yes
Energy Star
No
Finish Type
Painted
Frequency Rating
60 Hz
Grounded Convenience Outlet Included
No
JA8
No
Lamp Type Actual
LED
Lamp Type Basic
Solid State
Lamp Wattage
29
Lumens per Watt
61.80
Mount Location
Wall
MTO
No
Operating Temperature Celcius Max
30 ºC
Prop 65
Yes
Prop 65 Description
Reproductive Harm, Cancer
Room Type
Outdoor
Safety Rating
cULus
Starting Temperature Minimum
-30 °C
Sub Brand
Progress LED
Title 20
Yes
Title 24
Yes
Weight of Fixture Exceeds NEC Limits
No
Width Diameter
6 in Depth
Finish
Additional options that would change other selections
Included Items
Bulbs: (2) x 29 Watt LED
Call for Price
Qty:
BASE PRICE:
$
550
90
/ / 1
($550.90 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 5 items available.
