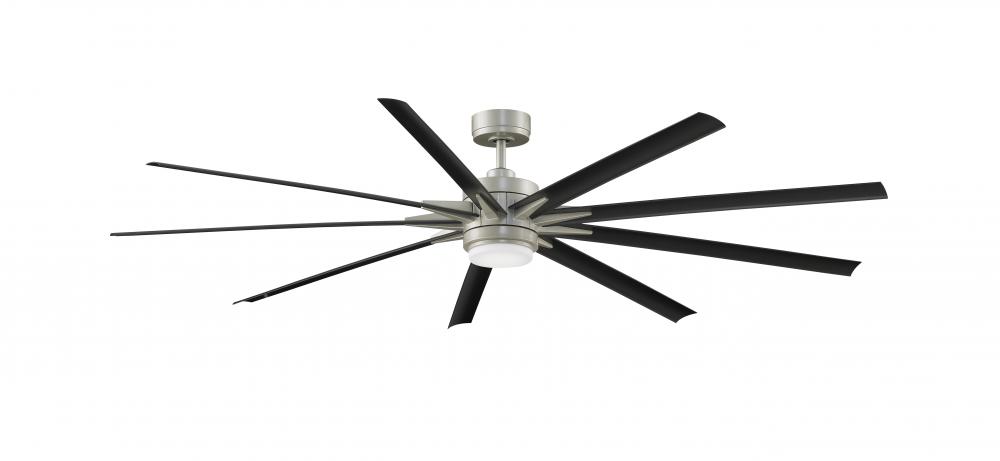

Odyn - 84 inch - BNW with BL Blades and LED Light Kit (716ED)
The Odyn, by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control, integrated LED with CCT Select Temperature settings, and a cap for use without the light. Blades sold separately. *Wet Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
10236 Cubic Feet per Minute
Electricity Rate
34 Watts (excluded lights)
Airflow Efficiency
232 Cubic Feet Per Minute Per Watt
Downloads
Product Specification
Item #
716ED
Dimensions
Height: 16.64"
Width: 84.00"
Length: 84.00"
Additional product details
Category
Exterior
, Fans
Subcategory
Exterior Fans
, Outdoor Fans
Finish
Nickel
Style
Traditional
Option
Energy Star
, Wet Rated
, LED
Voltage
10-99
Glass Finish or Style
Frosted
, Opal
Lumens
1101-1600
Number of Blades
8+ Blades
Location Rating
Wet Rated
Wattage
18w
Category
Fan-Uni
Family
Odyn 84
Voltage
120
Number of Bulbs
1 Bulbs
Additional Info
10,236 CFM on High
, Compatible with most Smart home devices (required controls sold separately)
, DC motor with reverse switch, variable fan speeds, light control, sleep timer, home away, fresh air
, ENERGY STAR Most Efficient 2020
, Set of (9) 84 inch Wet Rated blades and 18 watt LED light kit with cover and bulb included
, TR205 handheld remote with CR2032 batteries included
Air Flow CFM
10236
Air Flow Efficiency
232
Amperage
0.45
Blade Finish
Black
Blade Pitch
12
Blade Span
84
Bulb Type
18W LED Module
Canopy
Diameter- 6.46 Height- 2.58
Diameter
8.27
Down Rod Included
6
Electricity Used
34
Harmonized Codes
8414.51.3000
Kelvin
3000
Length
84
Light Kit Included
Yes
Lumens / Light Output
1400
Material
Composite
Motor Fan Speed
16
Motor RPM
70
Motor Size
DC165NL
Motor Type
DC
Remote Control Included
TR205D
Ship Carton Height
12.87
Ship Carton Length
40.08
Ship Carton Width
10.47
Ship Weight
37.95
Sold By
Each
Warranty
Limited Lifetime Warranty
Weight
34.18
Airflow Efficiency Low
1136
Airflow Efficiency Medium
507
Avg Airflow Efficiency
268
Avg CFM Energy
7210
Avg Energy Use Watts
27
Avg Estimated Yearly Energy Cost
8
Avg Estimated Yearly Energy Cost on HIGH
10
Blade Finish Method
Painted
Blade Material
Composite
Blade Reversible
No
Blade Sweep
84
Cap Included
Yes
Carton Cubic Feet
3.1254
Cartons Per Unit
1
Case Height
12.87
Case Length
40.08
Case Weight Pounds
37.95
Case Width
10.47
CEC Uploaded
Yes
Ceiling To Blade Edge
12.2
Ceiling to Bottom No LK
16.33
Ceiling to Bottom with LK
16.64
CFM Low
4219
CFM Medium
7527
Compatible Accessories
CCK8002BNW, DR1-CPBN, DR1SS-12BNW, DR1SS-18BNW, DR1SS-24BNW, DR1SS-36BNW, DR1SS-48BNW, DR1SS-60BNW, DR1SS-72BNW, SCB1-52
Compatible Controls
WFR8159
Compatible Wall Controls
TW206D
Country of Origin
China
CRI
90
Current Draw Low
0.07
Current Draw Medium
0.2
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
Exempt from DOE Procedure
No
Fan Energy Star
Yes
Included Control Type
Handheld
Leadwire
80
Light Kit Energy Star
Yes
Maximum Slope Degree
27
Motor Finish Method Type
Plated
Motor Reversible
Yes
Number of Blades
9
Product Certification
UL/CUL
Regulated Product
Yes
Reverse Switch Location
Control
RPM Low II
29
RPM Medium IV
50
Safety Rating
UL/cUL
Voltage Cycles
60HZ
Watts Low
4
Watts Medium
13
Watts Per Bulb
18
Wet Rated
Yes
