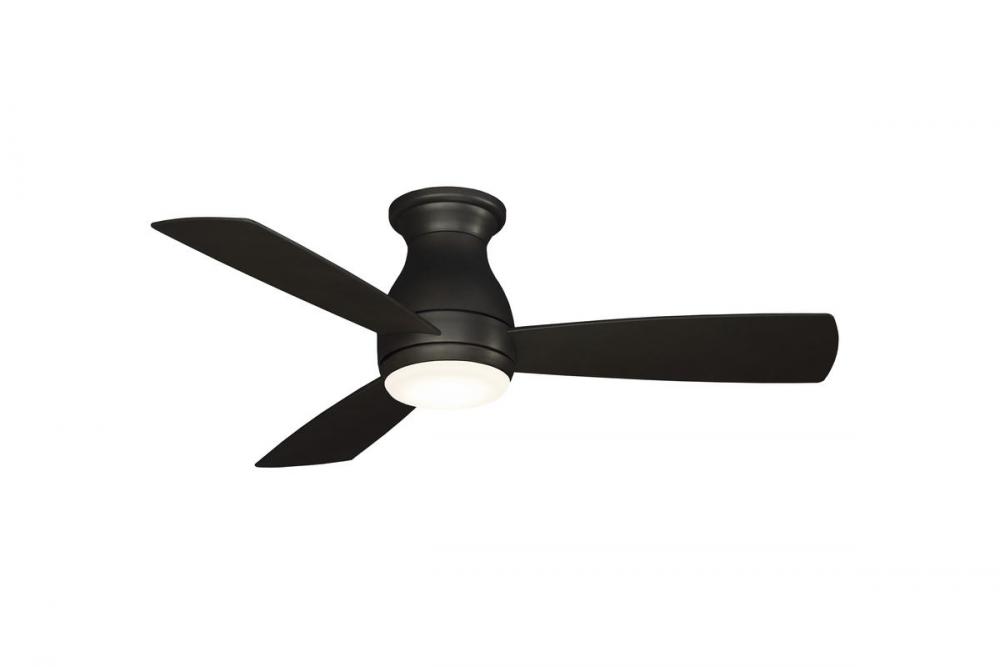

Hugh - 44 inch - DZW with LED Light Kit (7198L)
Strong, sturdy, and ready for anything. Hugh is wet rated and offers its users powerful airflow for any indoor or outdoor space in both 44" and 52" inches. Made from metal for durability, Hugh brings cooling with 3 speeds for preference. Integrated into the fan body is a dimmable LED light kit for additional luminance in dark areas. Hugh includes a handheld remote and a light cap with purchase. *Wet Rated for indoor or outdoor use *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
3785 Cubic Feet per Minute
Electricity Rate
50 Watts (excluded lights)
Airflow Efficiency
76 Cubic Feet Per Minute Per Watt
Downloads
Product Specification
Item #
7198L
Dimensions
Height: 11.74"
Width: 44.00"
Length: 44.00"
Additional product details
Category
Exterior
, Fans
Subcategory
Exterior Fans
, Outdoor Fans
Finish
Bronze
Style
Traditional
Option
Wet Rated
, LED
Voltage
10-99
Glass Finish or Style
Frosted
, Opal
Lumens
1101-1600
Number of Blades
3 Blades
Subfinish
Dark Bronze
Location Rating
Wet Rated
Wattage
18w
Category
Fan-Uni
Family
Hugh 44
Voltage
120
Number of Bulbs
1 Bulbs
Additional Info
3 Speed AC Motor with reverse switch
, 3785 CFM on High
, Limited Lifetime Warranty
, Set of (3) 44 or 52 inch Wet Rated blades and 18 watt LED light kit with cover and bulbs included
, TR500 handheld remote with 23A battery included
, WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM
3785
Air Flow Efficiency
76
Amperage
0.42
Blade Finish
Dark Bronze
Blade Pitch
12
Bulb Type
18W LED Module
Canopy
Diameter- 6.77
Diameter
7.85
Electricity Used
50
Harmonized Codes
8414.51.3000
Kelvin
3000
Length
44
Light Kit Included
Yes
Lumens / Light Output
1400
Material
Composite
Motor Fan Speed
3
Motor RPM
199
Motor Size
153 X 12
Motor Type
AC
Remote Control Included
TR500
Ship Carton Height
10.55
Ship Carton Length
25.20
Ship Carton Width
9.65
Ship Weight
16.05
Sold By
Each
Warranty
Limited Lifetime Warranty
Weight
13.89
Airflow Efficiency Low
115
Airflow Efficiency Medium
91
Avg Airflow Efficiency
79
Avg CFM Energy
2653
Avg Energy Use Watts
34
Avg Estimated Yearly Energy Cost
9
Avg Estimated Yearly Energy Cost on HIGH
14
Blade Finish Method
Painted
Blade Material
Composite
Blade Reversible
No
Blade Sweep
44
Cap Included
Yes
Carton Cubic Feet
1.4847
Cartons Per Unit
1
Case Height
10.55
Case Length
25.2
Case Weight Pounds
16.05
Case Width
9.65
CEC Uploaded
Yes
Ceiling To Blade Edge
9.36
Ceiling to Bottom No LK
11.35
Ceiling to Bottom with LK
11.74
CFM Low
1768
CFM Medium
3043
Compatible Controls
BTCR9, BTR9, CRL4WH, WFR50
Compatible Wall Controls
CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH
Country of Origin
China
CRI
90
Current Draw Low
0.23
Current Draw Medium
0.34
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
Exempt from DOE Procedure
No
Fan Energy Star
No
Included Control Type
Handheld
Leadwire
11
Light Kit Energy Star
No
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
3
Product Certification
UL/CUL
Regulated Product
Yes
Reverse Switch Location
Switch Housing
RPM Low II
98
RPM Medium IV
154
Safety Rating
UL/cUL
Voltage Cycles
60HZ
Watts Low
15
Watts Medium
33
Watts Per Bulb
18
Wet Rated
Yes
