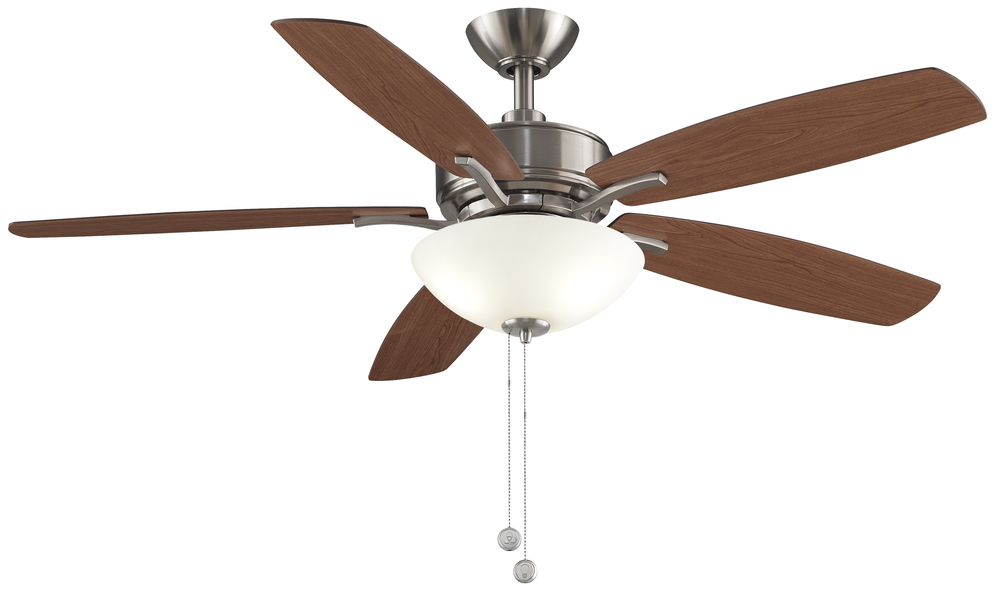

Aire Deluxe - 52 inch - BN with LED Bowl LK
Image may not reflect selected features
/vendors/778/large/FP6285BBN_1.jpg
additional image
additional image
Aire Deluxe - 52 inch - BN with LED Bowl LK (6YEHD)
Aire Deluxe from Fanimation is an exceptional transitional design for any and every indoor space. Available in 52 and 44 inch blade sweeps, three different finishes, a variety of blade finishes, and with the option of a light kit. With all of the possibilities, there is an Aire Deluxe for everyone. The Aire Deluxe features an AC motor that operates on three forward and three reverse speeds. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
4842 Cubic Feet per Minute
Electricity Rate
55 Watts (excluded lights)
Airflow Efficiency
88 Cubic Feet Per Minute Per Watt
Downloads
Product Specification
Item #
6YEHD
Dimensions
Height: 17.36"
Width: 52.00"
Length: 52.00"
Additional product details
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Nickel
Style
Traditional
Option
Dry Rated , LED
Voltage
10-99
Glass Finish or Style
Frosted , White/Off-White
Lumens
1601-2600
Number of Blades
5 Blades
Location Rating
Dry Rated
Wattage
9w
Category
Fan-Uni
Family
Aire Deluxe
Voltage
120
Number Of Bulbs
2 Bulbs
Additional Info
3 Speed AC Motor with reverse switch , 3941 CFM on High , Lifetime Limited Warranty , Pull Chain Operated , Set of 5 reversible 52 inch blades and (2) 9 watt LED bulbs and light kit included , WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM
4842
Air Flow Efficiency
88
Amperage
0.46
Blade Finish
Cherry/Dark Walnut
Blade Pitch
12
Blade Span
52
Bulb Type
9 Watt LED Bulb
Canopy
Diameter- 5.91 Height- 2.13
Diameter
9.06
Down Rod Included
4.5
Electricity Used
55
Harmonized Codes
8414.51.3000
Kelvin
2700
Length
52
Light Kit Included
Yes
Lumens / Light Output
1620
Material
Wood
Motor Fan Speed
3
Motor RPM
158
Motor Size
153 x 15
Motor Type
AC
Pull Chain Included
Yes
Ship Carton Height
10.5
Ship Carton Length
23
Ship Carton Width
12.8
Ship Weight
19.67
Sold By
Each
Warranty
Limited Lifetime Warranty
Weight
17.26
Airflow Efficiency Low
186
Airflow Efficiency Medium
124
Avg Airflow Efficiency
102
Avg CFM Energy
3476
Avg Energy Use Watts
34
Avg Estimated Yearly Energy Cost
10
Avg Estimated Yearly Energy Cost on HIGH
15
Blade Finish Method
Paper Overlay
Blade Material
Wood
Blade Reversible
Yes
Blade Sweep
52
Cap Included
No
Carton Cubic Feet
1.7889
Cartons Per Unit
1
Case Height
10.5
Case Length
23
Case Weight Pounds
19.67
Case Width
12.8
CEC Uploaded
Yes
Ceiling To Blade Edge
10.59
Ceiling to Bottom with LK
17.36
CFM Low
1927
CFM Medium
3222
Compatible Accessories
CCK8002BN, DR1-12BN, DR1-18BN, DR1-24BN, DR1-36BN, DR1-48BN, DR1-60BN, DR1-72BN, DR1-CPBN, SCK1-52BN
Compatible Controls
BTCR9, BTR9, C4, CRL4LA, CRL4WH, CRL8TS
Compatible Wall Controls
CW1SWLA, CW1SWWH, CW2LA, CW2WH, CW60WH, CWRL4LA, CWRL4WH
Country of Origin
China
CRI
90
Current Draw Low
0.2
Current Draw Medium
0.33
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
Dry Rated
Yes
Exempt from DOE Procedure
No
Fan Energy Star
No
Included Control Type
Pull Chain
Leadwire
54
Light Kit Energy Star
No
Maximum Slope Degree
19
Motor Finish Method Type
Plated
Motor Reversible
Yes
Number of Blades
5
Product Certification
UL
Regulated Product
Yes
Reverse Switch Location
Switch Housing
RPM Low II
67
RPM Medium IV
113
Safety Rating
UL/cUL
Voltage Cycles
60HZ
Watts Low
10
Watts Medium
26
Watts Per Bulb
9
Finish
