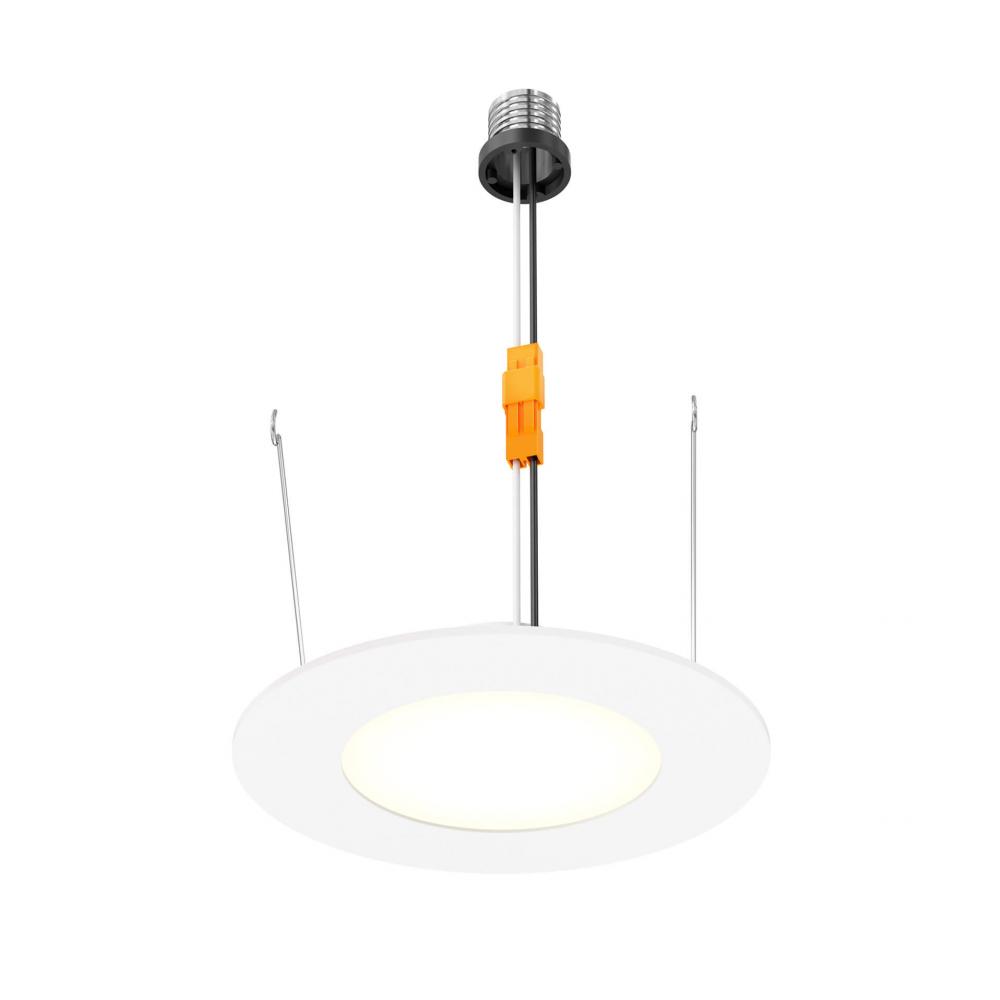

5.5-6? Recessed Retrofit
Image may not reflect selected features
/vendors/776/large/ledpnlrtf56-wh_02.jpg
additional image
additional image
5.5-6? Recessed Retrofit (6Y5HZ)
Our new LED retrofit panels provide the perfect solution for your renovations. There’s no need to completely change your current lighting, so simply use these innovative products and retrofit your existing installation. The change will be illuminating
Downloads
Product Specification
Item #
6Y5HZ
Dimensions
Height: 0.50"
Width: 7.13"
Length: 7.13"
Additional product details
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Option
ADA Compliant , Energy Star , Title 24 , Outdoor , Wet Rated
Category
Recessed
Subcategory
Retrofit
Finish
White
Family
Alter Series
Voltage
120 V
Number of Bulbs
1 Bulbs
Bulb Dimmable
Yes
Bulb Hours
50000
Harmonized Codes
9405.10.00.99
Kelvin
2700, 3000, 3500, 4000, 5000
Material
Aluminum
Ship Carton Height
3
Ship Carton Length
8
Ship Carton Width
7.5
Ship Weight
1.4
Warranty
5 Years Limited
ADA Compliant
Yes
Beam Angle
120°
Bulb CRI
80
Country of Origin
China
Delivered Lumens
720
Energy Star
Yes
Indoor
Yes
JA8
Yes
Location Rating
Wet Rated
Max Wattage
10 W
Maximum Working Temperature
40°C
Minimum Working Temperature
-20°C
Outdoor
Yes
Safety Rating
ETL Approved
Shipping Master Height
16.75
Shipping Master Length
19
Shipping Master Quantity
24
Shipping Master Weight
31
Shipping Master Width
17.5
Title 24
Yes
Wiring
Retrofit


Other Details:
  • 120V AC, A19 bulb replacement
  • Aluminum heatsink and thermal protection
  • Aluminum trim and housing
  • Edge-lit technology
  • Switch-selectable CCT: 2700 K/3000 K/ 3500 K/4000 K/5000 K
