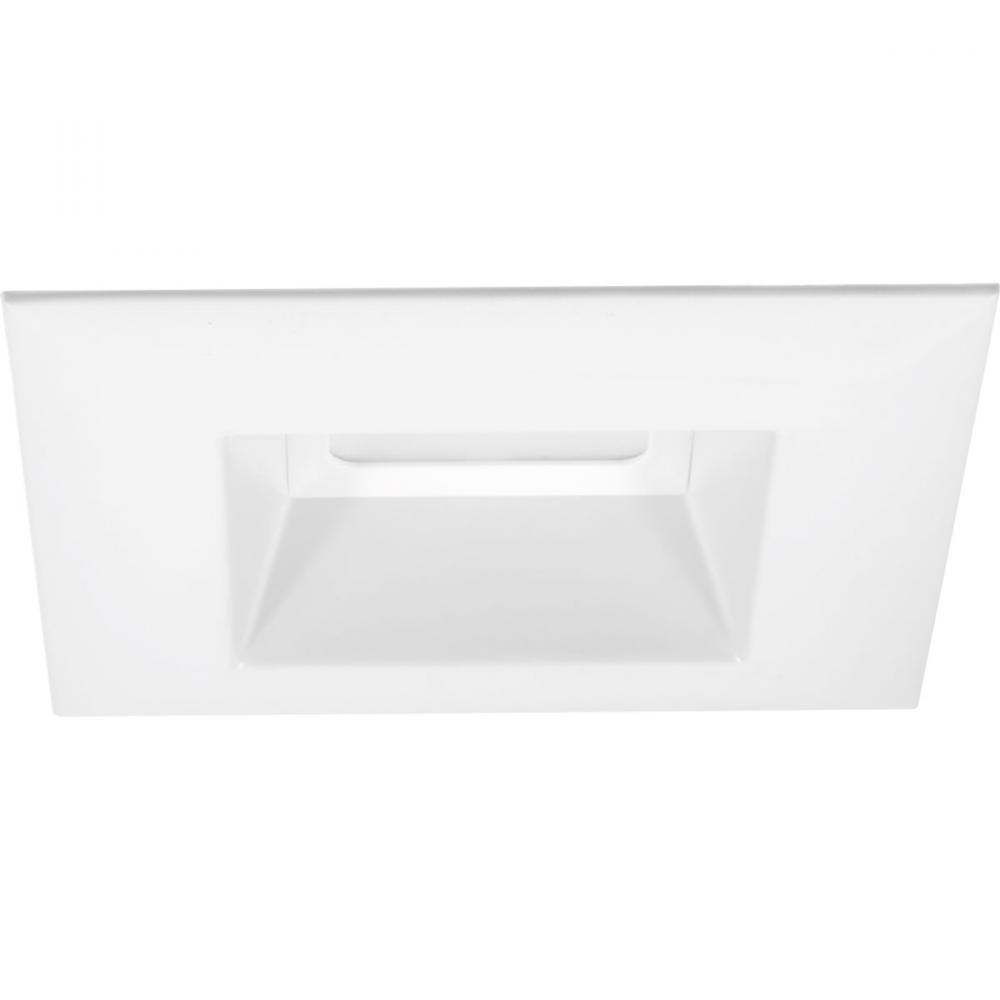

5" LED Square Recessed trim (GAGK7)
The P8161 is ideal for use in both new construction as well as remodel/retrofit. The sleek geometric shape provides a high end appeal for residential and commercial spaces. Light output is comparable to that of a typical 65W incandescent downlight, providing up to 75% energy savings. The P8161 is equipped with both Edison base adaptor and quick link connector allowing easy installation in many standard round incandescent recessed housings.
Product Specification
Item #
GAGK7
Dimensions
Height: 0.31"
Width: 5.78"
Additional product details
Category
Recessed Ltg.
Subcategory
Recessed Lighting Trims
Finish
White
Style
Traditional
Option
Energy Efficient
, Energy Star
, Title 24
, Wet Rated
, LED
Mount Type
Flush Mount
Location Rating
Wet Rated
Category
Recessed-Trim
Family
LED Retrofit Square
Voltage
120 V
Number Of Bulbs
1 Bulbs
Additional Info
Spec Sheet click here
, Warranty Info click here
, Country of Origin- China
Bulb Hours
50000
Bulb Type
LED
Introduction Date
06/01/2017
Kelvin
3000
Keyword(s)
White;5 Inch Led Square Retrofit;White;Solid State;Led;Recessed;Recessed Light;Recessed Light Kit;Recessed Trim;Trim;Recessed Housing;Housing;Recessed Light Trim;Retrofit Trim;Led Trim;Led Recessed Trim
Lumens / Light Output
694
Material
Aluminum Diecast Housing - Construction
Max Height
4
Ship Carton Height
7.370
Ship Carton Length
7.870
Ship Carton Width
5.120
Ship Weight
1.130
Special Features
White finish.;Diffused polycarbonate lens controls direct glare from the LEDs;Easy "Push and Twist" installation with (3) friction spring clips;Can be installed in most 5" round recessed housings;Dimmable to 10% with many Triac/Forward Phase d
Warranty
5 Year Warranty
Weight
1.04
Color
White
CRI
90+
Dimming Compatability
Lutron NTEVL-300;Lutron AYLV-600P;Leviton 6672
Dimming Protocol
Triac/Forward Phase
Dimming Range
10%
Finish Type
Painted
Frequency Rating
60 Hz
Glass Shape
Lens
LensShade Material
Polycarbonate
Listed
cCSAus
Mount Location
Ceiling Flush/Recessed
Operating Temprature
30º C
Overall Length With
Overall Ht.
Finish
Additional options that would change other selections
Glass
Additional options that would change other selections
Included Items
Bulbs: (1) x 9 Watt LED
