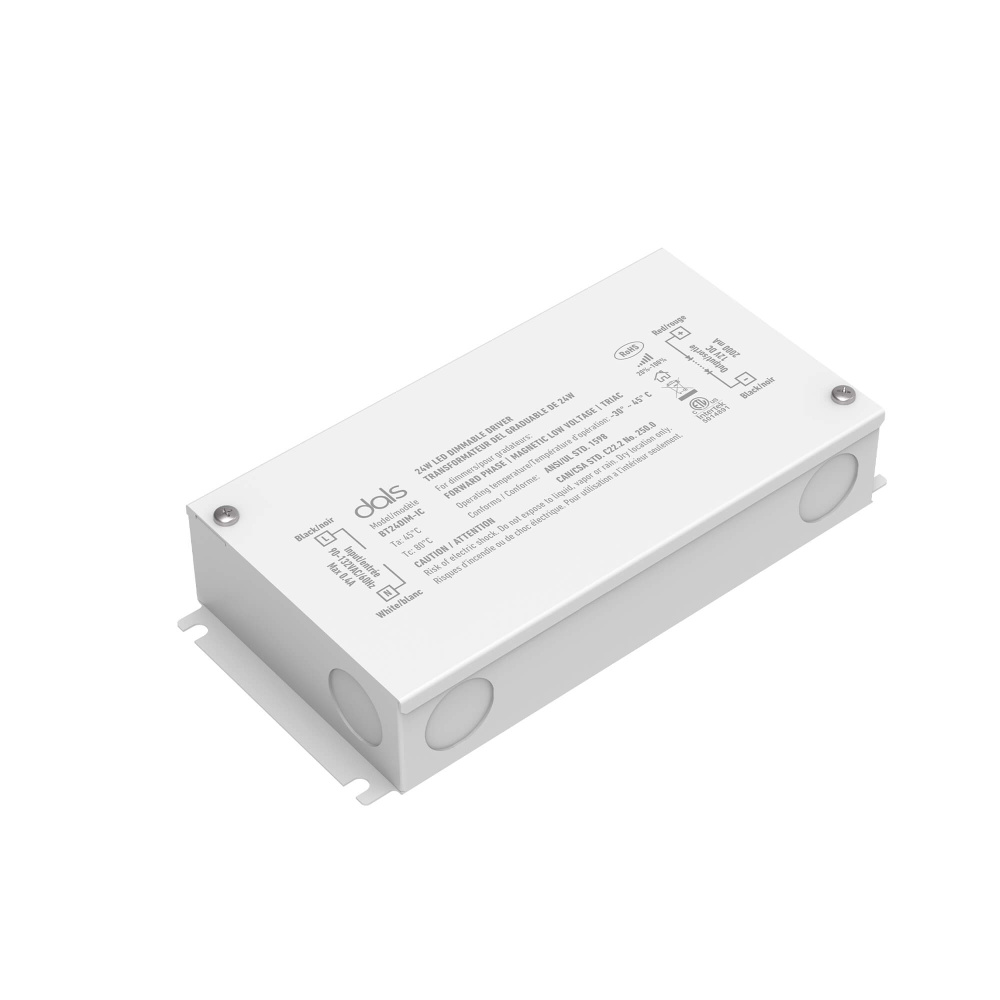

24W 12V DC Dimmable LED Hardwire driver
Image may not reflect selected features
/vendors/776/large/bt24dim-ic-1.jpg
additional image
24W 12V DC Dimmable LED Hardwire driver (6V6UD)
Dimming is made easy with our LED Dimmable Driver series. These products will allow you to find just the right amount of light based on the time of day your lighting fixtures are being used.
Downloads
Product Specification
Item #
6V6UD
Dimensions
Height: 1.50"
Width: 3.75"
Length: 7.50"
Additional product details
Category
Undercabinet
Subcategory
Undercabinet Accessories
Finish
White
Style
Traditional
Option
Dry Rated , LED , Prop 65
Voltage
10-99
Category
Undercabinet
Subcategory
Undercabinet Accessory
Finish
White
Family
Driver
Voltage
12 V
Bulb Dimmable
Yes
Bulb Hours
50000
Harmonized Codes
8504.40.9035
Material
Aluminum
Ship Carton Height
1.7
Ship Carton Length
8.7
Ship Carton Width
2.2
Ship Weight
1.3
Warranty
5 Years Limited
Country of Origin
China
Dimmer Type
Triac/ELV
Energy Star
No
IC Certification
Yes
Indoor
Yes
Location Rating
Dry Rated
Max Wattage
24 W
Maximum Working Temperature
40°C
Minimum Working Temperature
-20°C
Prop 65
Yes
Safety Rating
ETL Approved
Shipping Master Height
9.6
Shipping Master Length
10
Shipping Master Quantity
20
Shipping Master Weight
25
Shipping Master Width
9.1
Wiring
Hardwired


Other Details:
  • 2-year warranty
  • AC-dimming supply (with TRIAC or ELV dimmer)
  • Fully isolated metal case - Cooling by air convection
  • Integrated junction box for hard wire installation
  • Optimal dimming when used at 50% or more of total load
Call for Price
Qty:
BASE PRICE:
$
104
00
/ / 1
($104.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 1120 items available.
