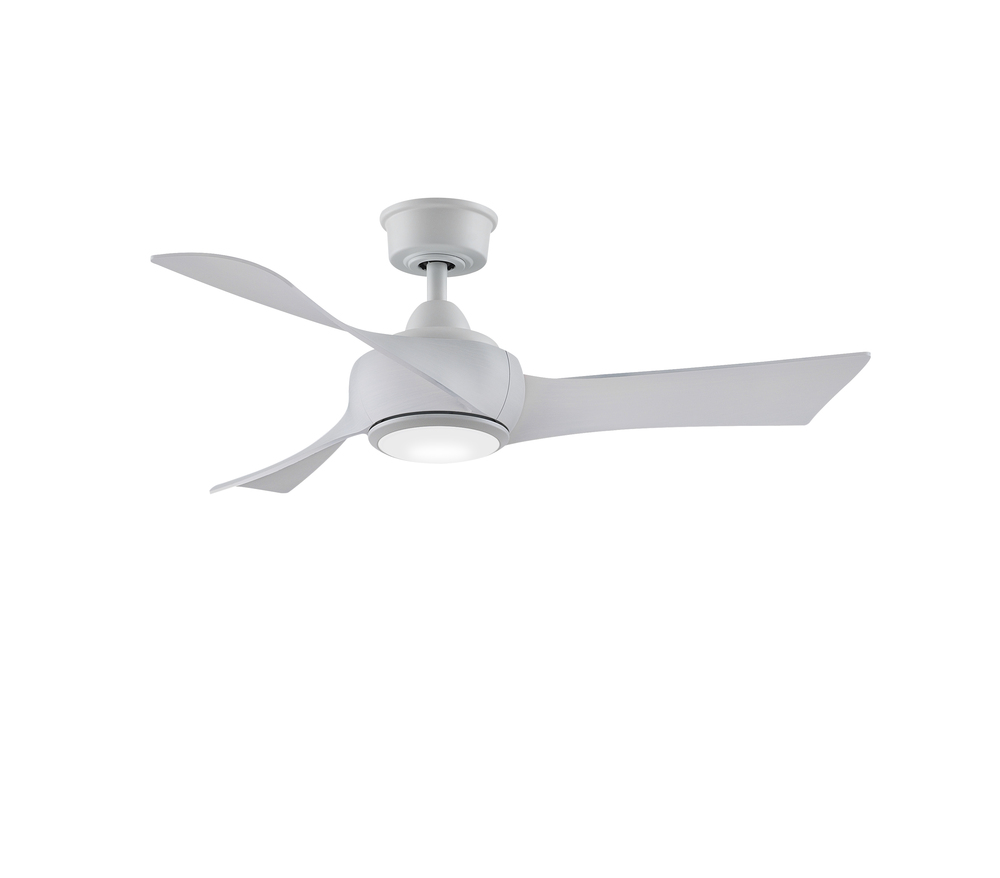

Wrap Custom Motor - MW (719AU)
Wrap yourself in style with this sophisticated ceiling fan from Fanimation. With many motor and blade finish combinations available, Wrap Custom is a versatile ceiling fan. LED and CCT Select Light kit, blades and motor sold separately. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
7141 Cubic Feet per Minute
Electricity Rate
36 Watts (excluded lights)
Airflow Efficiency
200 Cubic Feet Per Minute Per Watt
Downloads
Product Specification
Item #
719AU
Dimensions
Height: 12.46"
Width: 44.00"
Length: 44.00"
Additional product details
Category
Fans
Subcategory
Fan Motor Without Blades
Finish
White
Style
Traditional
Option
Energy Star
, Damp Rated
Voltage
10-99
Number of Blades
3 Blades
Location Rating
Damp Rated
Wattage
8w
Category
Fan-Multi
Family
Wrap Custom
Voltage
120
Additional Info
7141 CFM on High
, Compatible with most Smart home devices (required controls sold separately)
, DC motor with reverse switch, variable speeds, light controls, sleep timer, home away, fresh air and
, ENERGY STAR Most Efficient 2020
, Set of 3 Damp Rated blades with multiple finish options and 18 watt LED light kit (sold separately)
, TR205D handheld remote with CR2032 batteries included
Air Flow CFM
7141
Air Flow Efficiency
200
Amperage
0.49
Blade Pitch
Varied
Canopy
Diameter- 6.14 Height- 2.55
Diameter
8.88
Down Rod Included
4.5
Electricity Used
36
Harmonized Codes
8414.51.3000
Length
44
Light Kit Included
No
Max Length
60
Max Width
60
Motor Fan Speed
16
Motor RPM
138
Motor Size
158 x 22
Motor Type
DC
Remote Control Included
TR205D
Ship Carton Height
7.6
Ship Carton Length
16.34
Ship Carton Width
8.86
Ship Weight
14.99
Sold By
Each
Warranty
Limited Lifetime Warranty
Weight
12.13
Airflow Efficiency Low
291
Airflow Efficiency Medium
552
Avg Airflow Efficiency
211
Avg CFM Energy
5114
Avg Energy Use Watts
24
Avg Estimated Yearly Energy Cost
7
Avg Estimated Yearly Energy Cost on HIGH
11
Cap Included
Yes
Carton Cubic Feet
0.6367
Cartons Per Unit
1
Case Height
7.6
Case Length
16.34
Case Weight Pounds
14.99
Case Width
8.86
CEC Uploaded
Yes
Ceiling To Blade Edge
11.83
Ceiling to Bottom No LK
12.46
Ceiling to Bottom with LK
13.05
CFM Low
581
CFM Medium
4359
Compatible Accessories
CCK8002MW, DR1-12MW, DR1-18MW, DR1-24MW, DR1-36MW, DR1-48MW, DR1-60MW, DR1-72MW, DR1-CPMW, SCB1-52
Compatible Blades
BPW8530-44BL, BPW8530-44BN, BPW8530-44DWA, BPW8530-44N, BPW8530-44WE, BPW8530-44WW, BPW8530-48BL, BPW8530-48BN, BPW8530-48DWA, BPW8530-48N, BPW8530-48WE, BPW8530-48WW, BPW8530-52BL, BPW8530-52BN, BPW8530-52DWA, BPW8530-52N, BPW8530-52WE, BPW8530-52WW, BPW
Compatible Light Kits
LK8530MW
Compatible Wall Controls
TW206D
Country of Origin
China
Current Draw Low
0.05
Current Draw Medium
0.13
Damp Rated
Yes
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
Exempt from DOE Procedure
No
Fan Energy Star
Yes
Included Control Type
Handheld
Leadwire
80
Maximum Slope Degree
27
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
3
Product Certification
UL/CUL
Regulated Product
Yes
Reverse Switch Location
Control
RPM Low II
43
RPM Medium IV
88
Safety Rating
UL/cUL
Voltage Cycles
60HZ
Watts Low
2
Watts Medium
8
