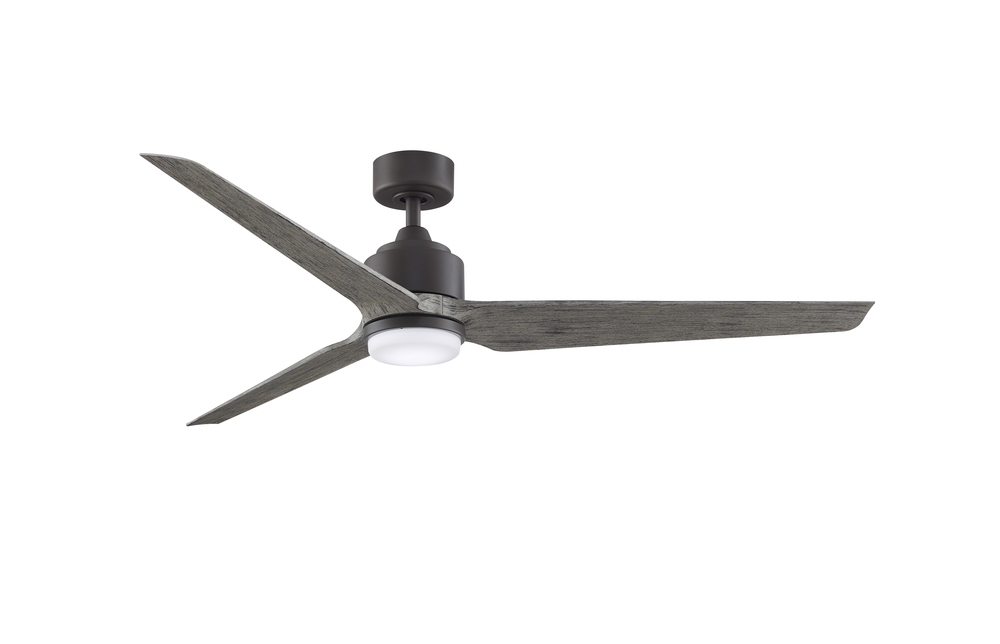

TriAire Custom Motor - GRW (719AM)
The TriAire Custom by Fanimation fits any style in any location. With eight different blade sweeps in multiple finishes, you can create the TriAire Custom that fits your space. This wet rated ceiling fan has a 31 speed DC motor. LED with CCT Select Light kit, blades and motor sold separately. *Wet rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
10387 Cubic Feet per Minute
Electricity Rate
30 Watts (excluded lights)
Airflow Efficiency
342 Cubic Feet Per Minute Per Watt
Downloads
Product Specification
Item #
719AM
Dimensions
Height: 15.92"
Width: 64.00"
Length: 64.00"
Additional product details
Category
Fans
Subcategory
Fan Motor Without Blades
Finish
Gray
, Miscellaneous
Style
Traditional
Option
Energy Star
, Wet Rated
Voltage
10-99
Number of Blades
3 Blades
Location Rating
Wet Rated
Wattage
9w
Category
Fan-Multi
Family
TriAire Custom
Voltage
120
Additional Info
8666 CFM on High
, Compatible with most Smart home devices (required controls sold separately)
, DC motor with reverse switch, variable speeds, light controls, sleep timer, home away, fresh air and
, ENERGY STAR Most Efficient 2020
, Set of 3 Wet Rated blades with multiple finish options and 18 watt LED light kit (sold separately)
, TR205D handheld remote with CR2032 batteries included
Air Flow CFM
10387
Air Flow Efficiency
342
Amperage
0.43
Blade Pitch
14
Canopy
Diameter- 5.75 Height- 2.57
Diameter
7.09
Down Rod Included
8
Electricity Used
30
Harmonized Codes
8414.51.3000
Length
64
Light Kit Included
No
Max Length
84
Max Width
84
Motor Fan Speed
16
Motor RPM
100
Motor Size
153 x 25
Motor Type
DC
Remote Control Included
TR205D
Ship Carton Height
8.35
Ship Carton Length
15.94
Ship Carton Width
8.86
Ship Weight
15.08
Sold By
Each
Warranty
Limited Lifetime Warranty
Weight
13.67
Airflow Efficiency Low
723
Airflow Efficiency Medium
757
Avg Airflow Efficiency
378
Avg CFM Energy
7827
Avg Energy Use Watts
21
Avg Estimated Yearly Energy Cost
6
Avg Estimated Yearly Energy Cost on HIGH
9
Cap Included
Yes
Carton Cubic Feet
0.6824
Cartons Per Unit
1
Case Height
8.35
Case Length
15.94
Case Weight Pounds
15.08
Case Width
8.86
CEC Uploaded
Yes
Ceiling To Blade Edge
16.42
Ceiling to Bottom No LK
15.92
Ceiling to Bottom with LK
18.12
CFM Low
1734
CFM Medium
6891
Compatible Accessories
CCK8002GRW, DR1-CPGR, DR1SS-12GRW, DR1SS-18GRW, DR1SS-24GRW, DR1SS-36GRW, DR1SS-48GRW, DR1SS-60GRW, DR1SS-72GRW, SCB1-52
Compatible Blades
BPW8515-64BLW, BPW8515-64DWAW, BPW8515-64MWW, BPW8515-64SLW, BPW8515-64WEW, BPW8515-72BLW, BPW8515-72DWAW, BPW8515-72MWW, BPW8515-72SLW, BPW8515-72WEW, BPW8515-84BLW, BPW8515-84DWAW, BPW8515-84MWW, BPW8515-84SLW, BPW8515-84WEW
Compatible Controls
WFR8515
Compatible Light Kits
LK8514GRW
Compatible Wall Controls
TW206D
Country of Origin
China
Current Draw Low
0.05
Current Draw Medium
0.14
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
Exempt from DOE Procedure
No
Fan Energy Star
Yes
Included Control Type
Handheld
Leadwire
80
Maximum Slope Degree
27
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
3
Product Certification
UL/CUL
Regulated Product
Yes
Reverse Switch Location
Control
RPM Low II
28
RPM Medium IV
66
Safety Rating
UL/cUL
Voltage Cycles
60HZ
Watts Low
2
Watts Medium
9
Wet Rated
Yes
Finish
Additional options that would change other selections
Call for Price
BASE PRICE:
$
764
96
/
/ 1
($764.96 / 1)
